TrailerPay Take Home That Trailer Today Apply Now

  • $300.00

    1400KG ATM UPGRADE - DISC BRAKE- DLXITS

  • $740.00

    1600kg ATM Upgrade - Disc Brake - DLX

  • $380.00

    Cage 600mm high 6×4 Galvanized (Package Price)

  • $500.00

    Cage 800mm high 6×4 Galvanized - Heavy Duty 5mm mesh (Package Price)

  • $165.00

    H Frame slide in 4ft wide

  • $220.00

    H Frame Bolted on 4ft wide

  • $95.00

    Draw Bar In Fill Checker Plate 350mm Deep

  • $270.00

    Pans - Checker Side Steps on each corner of guards

  • $300.00

    SIDE UPGRADE TO 450mm 6×4

  • $320.00

    SIDE UPGRADE TO 500mm 6×4

  • $80.00

    Flush Tie Ring - welded into floor

  • $850.00

    RAMP GALVANIZED GRID MESH HEAVY DUTY - 1200W X 1600H WITH LIFT ASSIST

  • $135.00

    Ramp Holder- Removable Flat Bar (Select only if no cage is fitted)

  • $125.00

    SMARTRAMP - Turns standard tailgate into a ramp

  • $0.00

    WHAT IS 2-PACK PAINT & IT'S ADVANTAGES 2-pack paint is a two part, chemically catalysed protective coating for your equipment. Its two main components consist of a coloured acrylic polyurethane and a hardener resin that, when combined, chemically harden to provide a deluxe coloured protective layer that offers superior durability, colour fastness and gloss when compared to many other types of protective coatings. "" Why is it better to use 2K over ENAMEL paintS? "" When compared to traditional single pack paints such as enamel that rely on the evaporation of thinners to drive the drying process, two pack paints take advantage of a chemical reaction for dryness meaning that less of the top-coat evaporates with the thinners. Furthermore, the hardener resin’s additional qualities of hardness and durability complements the durability inherently provided by the polyurethane component. All of these factors combined result in a final topcoat product that has superior and longer lasting gloss, colour fastness, durability and hardness.

  • $0.00

    Polythane 2-pack - N65 GRAPHITE GREY

  • $75.00

    Polythane 2-pack - GUNMETAL GREY METALLIC

  • $75.00

    Polythane 2-pack - AZURE BLUE

  • $90.00

    Polythane 2-pack - CLARET

  • $90.00

    Polythane 2-pack - DELICIOUS RED

  • $75.00

    Polythane 2-pack - JIMS MOWING BRUNSWICK GREEN

  • $150.00

    Polythane 2-pack - STRAIGHT WHITE - includes edge primer

  • $112.50

    Polythane 2-pack - Black

  • $1,500.00

    HOT DIPPED GALVANIZED 64-85 For ultimate rust protection, get you trailer Hot dipped Galvanized. done right here in Adelaide.

  • $195.00

    Rego 12 Months inc fitting (SA License / Client No. Req)

  • $150.00

    14" Spare Wheel Steel Rim 185C 850kg PCD-114.3

TOTAL INC GST - $1,950.00

Carrying Capacity - 485kg

ADD TO CART

Australian Made Logo Australian Owned

“Crafted with pride in our Adelaide factory at Lonsdale since 1990.”

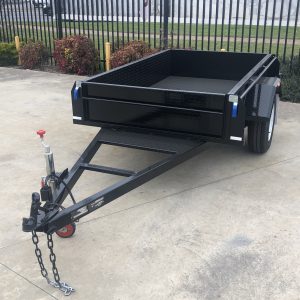

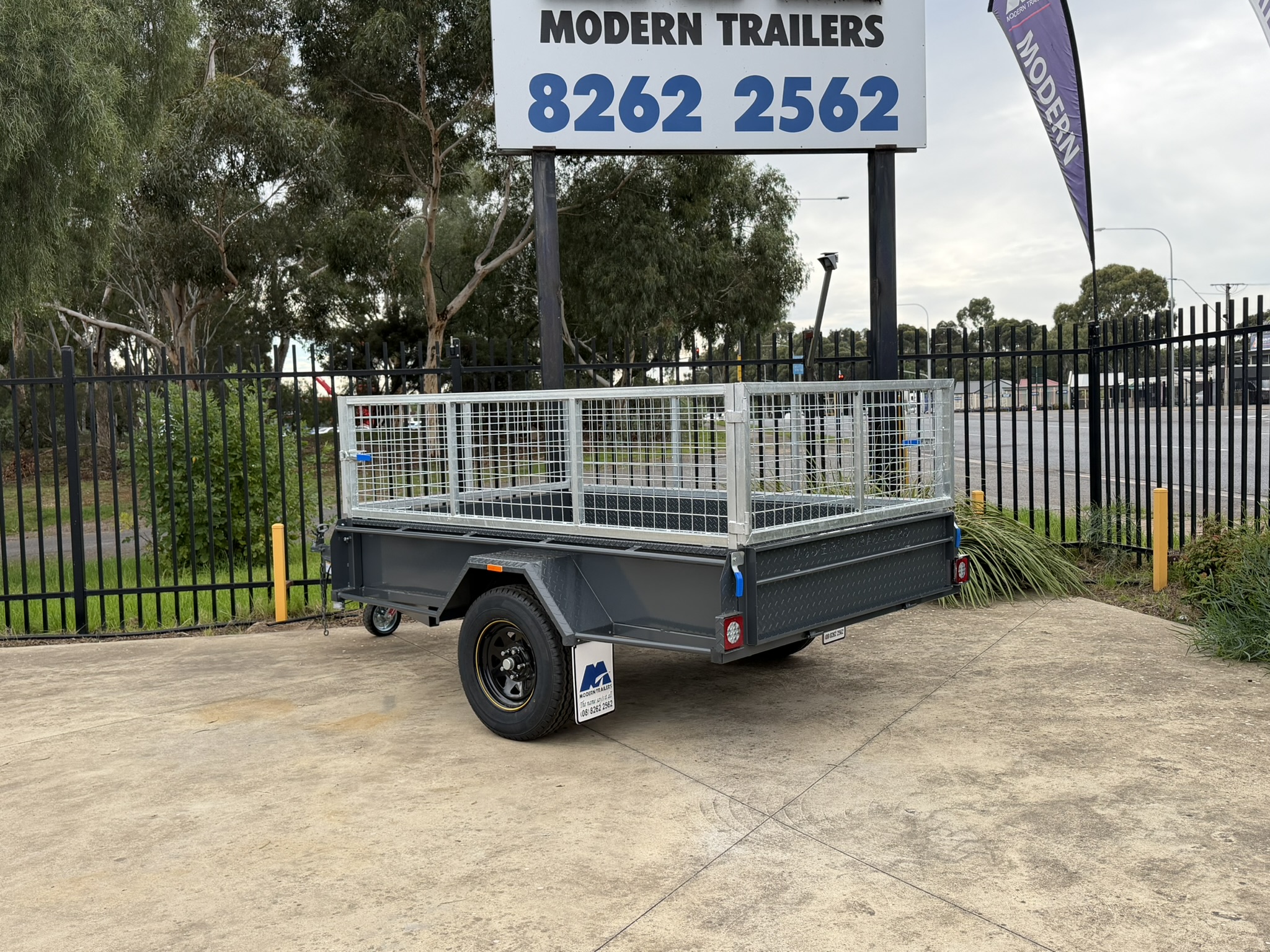

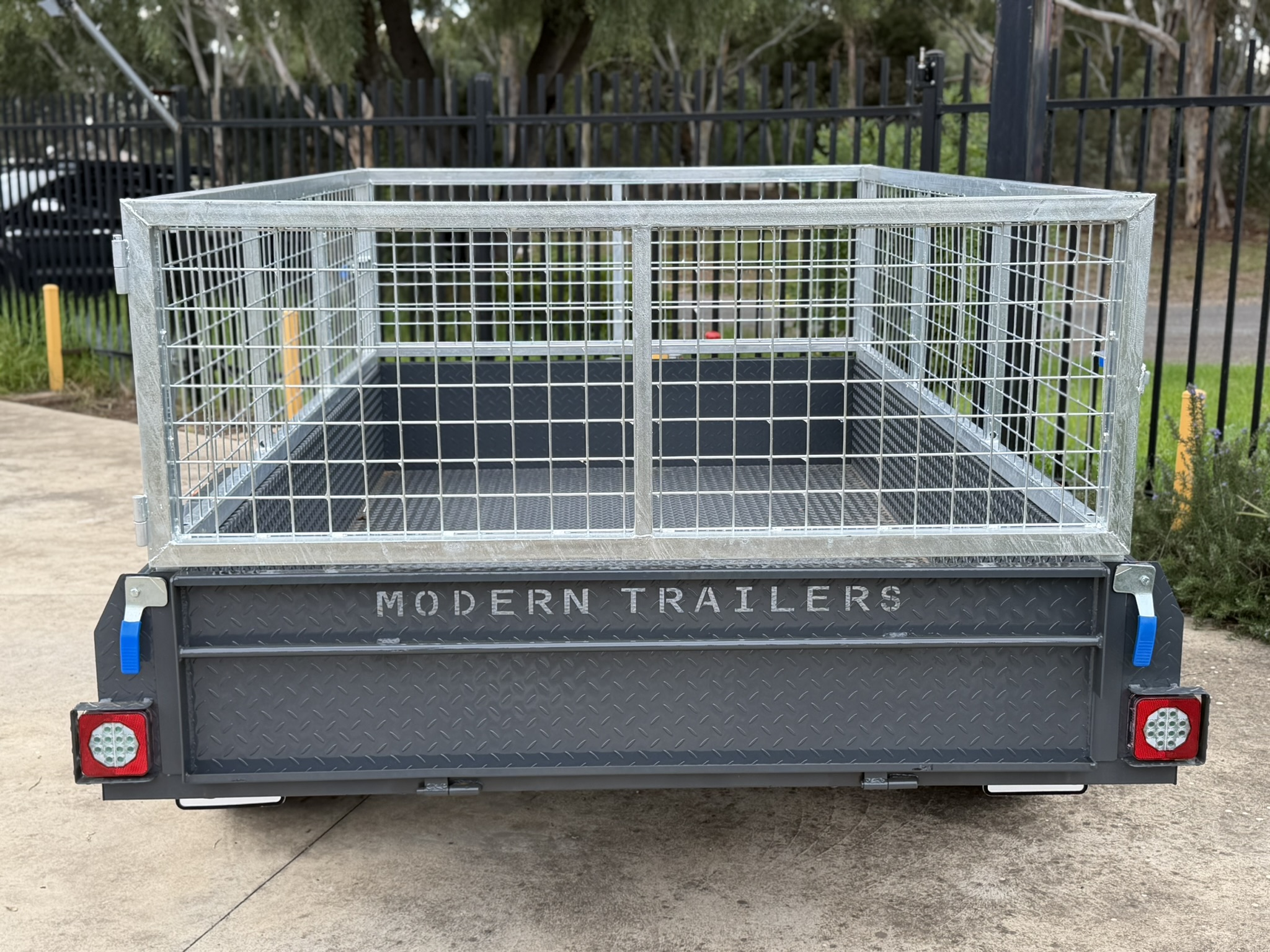

750kg ATM Load Rating

  • Rolled Checker Plate body with 350mm High Sides
  • Heavy duty chassis 50×50 SHS
  • DRAW BAR 75X50
  • CAGE INSERTS FITTED ON EACH CORNER OF THE SIDES 50X50 SHS
  • SKID RAILS (DESIGNED FOR EXTRA STRENGHT & PROTECTION)
  • Front & Rear opening checker plate tailgate with tie rails
  • Swing handles to secure the tailgates with  Rubber sleeves
  • Double folded checker plate guards FOR A  MODERN LOOK
  • Full length side tie rails
  • SPARE WHEEL HOLDER mounted on the draw bar
  • SLIPPER SPRINGS (Unbaked Only)
  • ADVANCED – INDEPENDENT TORSION SUSPENSION (ITS)

  • 50mm Coupling
  • LED 12/24V LIGHTS WITH 7-PIN FLAT PLUG (ALL JOINS SOLDERED)
  • Front & sides reflectors
  • Large mudflaps 300x230mm
  • Swing up Jockey wheel
  • Brand new 14” Sunraysia Rims with 185C new tyres
  • BODY SCRAPED CLEANED & WASHED, EXTERIOR JOINTS SEALED TO PREVENT MOISTER
  • THE COMPLETE TRAILER INCLUDING THE CHASSIS ETCH PRIMED & THEN FINISHED WITH A TOP COAT OF HIGH QUALITY POLYTHANE 2-PACK PAINT



WHAT IS ITS SUSPENSION: INDEPENDENT TORSION SUSPENSION

ITS axles have a straightforward, attached construction with a torsion suspension system. Four rubberized cords are inside the axle housing which handle suspension travel and shock absorption. In addition, this system offers trailer rigidity as the axle is bolted to the trailer frame.

BENEFITS:

The main advantages of a torsion bar suspension are soft ride due to elasticity of the bar, durability, and small profile along the width of the vehicle.

ADVANTAGES:

Smother ride & lower more ground clearance:
Self-damping action and independent suspension, ITS delivers a smooth, quiet ride like no other – adding up to an improved towing experience. Also, by bolting the axle up close to the chassis this give more ground clearance than traditional spring & axle setup.

Lower Maintenance:
Except for periodic inspection of the fasteners used to attach the ITS axle to the Trailer frame, no other suspension maintenance is required on ITS axles. They are, of course, subject to normal maintenance and inspection procedures regarding brakes, hubs, bearings, seals, wheels and tyres.

Traditional leaf springs, axles and all the componentry may fatigue over time and break whereas the ITS suspension has less componentry eliminating this issue.



Pictures displayed are for illustrative purpose only & may show more or less features that are fitted standard





ATM UPGRADE PACKAGE1400kg – 1600kg
upgraded draw bar
Upgrades suspension
Brakes fitted
DIMENSIONS 6×4 750kg
SIDE HEIGHT350
FLOOR HEIGHT530
OVERALL HEIGHT880
INSIDE LENGTH1800
INSIDE WIDTH1220
DRAW BAR LENGTH1250
OVERALL LENGTH3050
OVERALL WIDTH1730

Important Note:

ATM upgrades will change the heights & widths of the trailers

   Why buy a Modern Trailer

  • 100% Australian Made in our Lonsdale SA  Factory
  • Australian Owned & Operating since 1990
  • Largest trailer Manufacture in South Australia
  • 2 locations conveniently located in North & South of the city
  • Specialize in custom made
  • Fast Quote times

We manufacture and supply a wide range of trailers with different
sizes, models, and styles with single, dual & triple axle configurations.



Structural Warranty

Firstly congratulations on purchasing your new Modern Trailer



1. All our new trailers are covered by a structural Warranty.

2. The Warranty entitles the original purchaser from the date of purchase and covers the chassis and draw bar only from fatigue and has a guarantee for a period of one (5) years for domestic use, (1) year for Commercial or Business use from original date of purchase subject to the terms below:

3. Modern Trailers retains the right to repair or replace any part which in the opinion of the manufacturer is defective due to faulty material or workmanship provided that the trailer has been operated in accordance with the manufacturer’s instructions and safe towing practices:

4. Modern Trailers Warranty does not cover any trailer parts or accessories that are not manufactured by Modern Trailers. All 3rd party parts or accessories are supplied with the Warranty terms & conditions and period provided by the manufacturer of any such parts or accessories. Those accessories include but are not limited to: – Jockey Wheels, Jacks, Legs and Winches etc – Axles, brakes, calipers, lights and plugs

5. All Warranty repairs must be performed during normal business hours at our Modern Trailers, Factory 12 Sherriffs road Lonsdale 5160. Or 1 levels court Pooraka SA 5095

Warranty repairs carried out in other locations require prior authorisation From Modern Trailers. Unauthorised repairs are not covered under this Warranty.

6. The purchaser is responsible to care for their Trailer in accordance with the ‘Modern Trailers Maintenance Manual.

7. The purchaser will be responsible for paying all service call fees or transport charges, and damages and loss incurred in connection with the transportation of the trailer to and from Modern Trailers premises.

8. The following is not covered by Warranty in any way what so ever:

– Paint – Rust

– Wheels & Tyres

– General consumables e.g, Springs, bearings, -brakes, wiring etc

– Any other items deemed to be consumable

9. This Warranty does not apply to any trailer which has been:

  1. subject to misuse, neglect, accident or alteration by any person.
  2. damaged or destroyed by fire, flood, Act of God or other inevitable accident.
  3. hired to any person or persons.
  4. Towed by a rigid truck (warning towing with a truck or modified suspension on 4×4 can cause serious damage cracks or even brakage to chassis and draw bar)

This Warranty is in addition to any rights or remedies the purchaser has under the Trades Practices Act or state laws.

10. This Warranty is not offered on products sold at auction or as a demonstrator, factory seconds or on used products, unless with express written permission by Modern Trailers.

11. Unless any addition or attachment to this product has Modern Trailers, specific approval or is sold as a Modern Trailers product the Warranty on the trailer is waived. Trailers are designed to perform a specific task under established test loads and unauthorised attachments may produce stresses for which the design is not appropriate.

12. Design, specifications and colours are subject to change without notice.

13. Modern Trailers Structural Warranty may change at any time without notice.
